Free Network Diagram Software – NetBrain Workstation Map Edition Lite

NetBrain Workstation Map Edition Lite, a free network diagram software designed to help network professionals draw out a network diagram for network skills learning purpose.

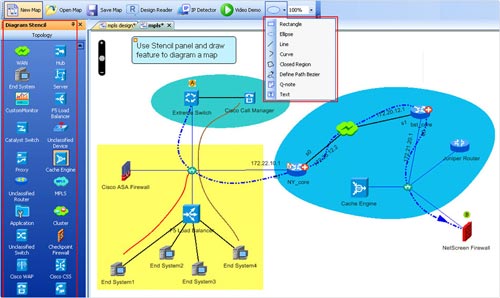

netbrain map lite

This free network diagram software is quick user friendly. Using NetBrain Map Edition Lite, dynamic network diagrams can be created instantly in many different ways. For example, you can drag and drop configuration files of your network devices to build a network diagram automatically in just a few seconds. Meanwhile, NetBrain’s Q-map encapsulates a vast amount of network design data. To add or remove details in the map, just simply zoom in or out. Plus more, the intelligent layout ensures that the map is always readable and you can export the network diagram to Microsoft Visio map in seconds.

However, Netbrain Workstation Map Edition Lite has few limitations compare to full map edition. Below is the limitation:

  • Support up to six (6) devices at a time
  • Size of configuration file must be less than 6k
  • Export NetBrain map to Visio map up to 30 times
  • Non-commercial Use Only

Download NetBrain Workstation Map Edition Lite
